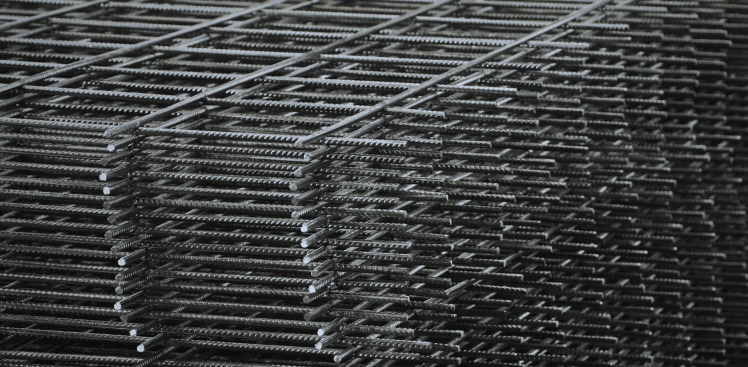

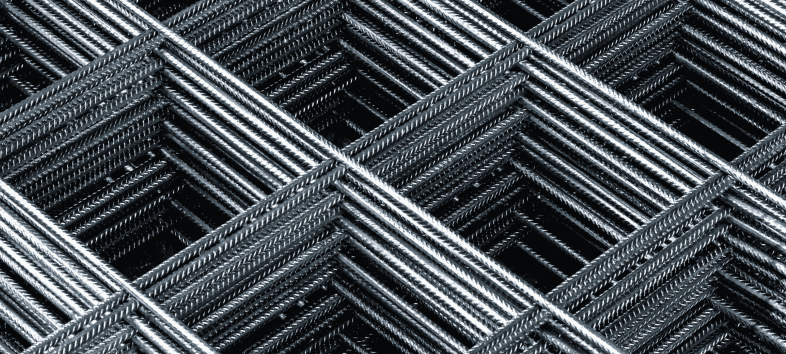

We produce a range of Welded Fabric (Welded Wire Mesh) including standard, galvanized, epoxy-coated, and custom-made options—these products are designed to reinforce structural elements in both modern and traditional construction.
● High-Quality Welded Wire Mesh: Manufactured using premium-grade steel bars for superior durability and performance.
● International Standards Compliance: Meets and exceeds global quality and safety requirements.
● Uniform Strength Distribution:Engineered for even load-bearing capacity across the mesh structure.
● Optimal Concrete Bonding: Designed for strong adhesion in reinforced concrete applications.
● Precision Dimensions & Spacing:Ensures consistent mesh size for accuracy in construction projects.
● Traceability: Every batch is documented for quality control and assurance.
● Sustainable Manufacturing:
Produced with eco-conscious processes to reduce environmental impact.
● Regulatory Compliance: Fully adheres to local and international building codes.

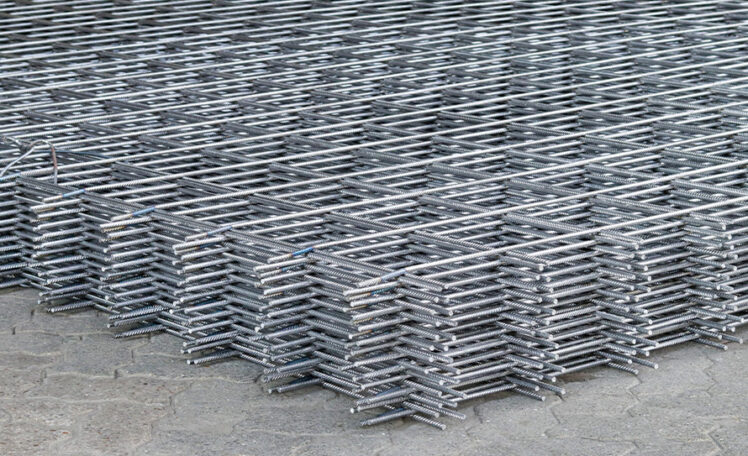

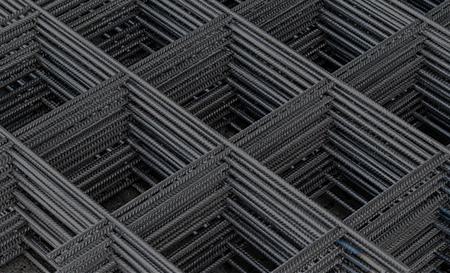

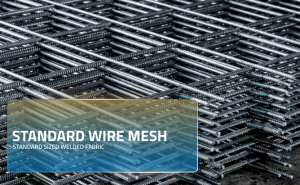

Standard sheets have cross sections in longitudinal and transverse directions on the material as well as fixed outer dimensions.
○ A-98 – 5mm (2.4mx4.8m) – 200mm x200mm
○ A142 – 6mm (2.4mx4.8m) – 200mm x200mm
○ A193 – 7mm (2.4mx4.8m) – 200mm x200mm
○ A252 – 8mm (2.4mx4.8m) – 200mm x200mm
○ A393 – 10mm (2.4mx4.8m) – 200mm x200mm
○ A565 – 12mm ( 2.4mx4.8m) – 200mm x200mm
Our welded wire mesh products meet the project specification requirements such as below.
○ International Standard: ISO 6935-3
○ British Standard: BS 4483-2005
○ American Standards: ASTM A1064

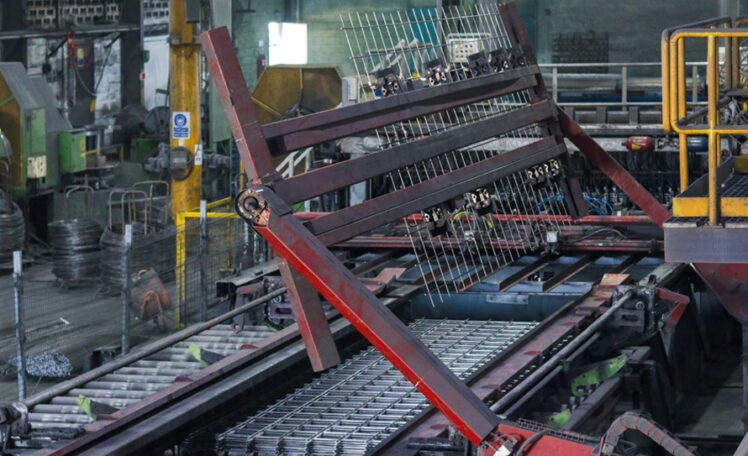

A high degree of production flexibility helps us to manufacture the standard engineered mesh sheets to specific construction requirements.
● Standard Sheet Size: 4.8 m x 2.4 m
● Wire Diameter Range: 5 mm to 12 mm
● Wire Spacing: 200 mm x 200 mm
Standard Welded Wire Mesh can be placed faster and requires less man-power on site.
This increases the turnaround time of projects while reducing costs.
The exact size of reinforcement needed can be provided and with these single units, less improper bending occurs.
