Customized Wire Mesh

We manufacture custom welded wire mesh. Welded wire mesh is a versatile material constructed from steel that is welded at each contact point. Mainly used in square or rectangular shape as a barrier fence, it is also used in reinforced concrete.

Applications and Features

  • Reinforced concrete slabs
  • Can be used for walls and floor concrete reinforcement
  • Mesh can be used for industrial purposes such as safety fencing, shelves and partition
  • Being versatile, lightweight, and easy to install are some key features

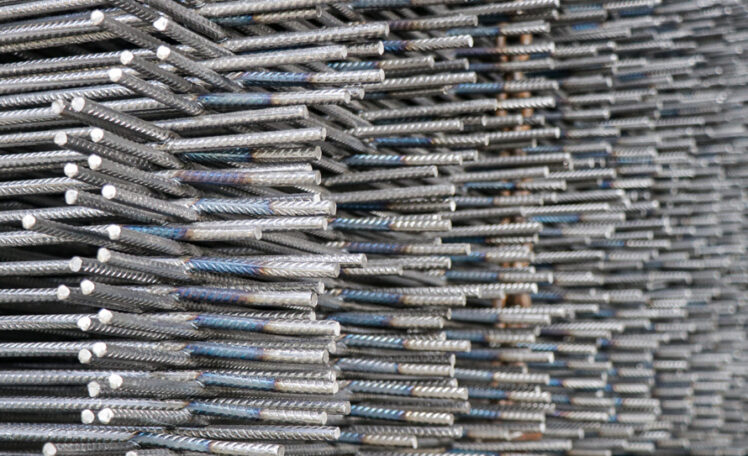

Customized/Engineered Sheets

Manufactured in various wire diameters from 5mm to 12mm and spacing subject to certain parameters, ie. weldability and sheet Size.

  • Maximum sheet length: 12.00 m
  • Maximum sheet width : 3.40 m
  • Maximum Dia. of wire : 12.0 mm diameter
  • Minimum Dia. of wire : 5.0 mm diameter
  • Longitudinal wire spacing: Multiples of 50mm – Minimum 100mm
  • Cross sectional wire spacing: Multiples of 25 mm – Minimum 100mm

Manufacturing Standards

Our welded wire mesh products meet the project specification requirements such as below.

  • International Standard – ISO6935-3
  • British Standard – BS 4483
  • American Standard – ASTM A1064

Key Advantages

Welded wire mesh can be placed faster and requires less man-power on site. This increases the turnaround time of projects while reducing costs. The exact size of reinforcement needed can be provided and with these single units, less improper bending occurs.


Get in Touch

Submit an enquiry for more information. We’ll arrange a consultation tailored to your business.
